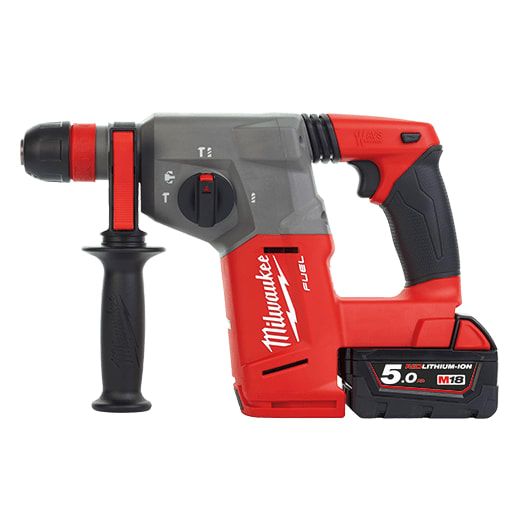

M18 FUEL SDS-Plus Hammer (3 Mode)
M18 FUEL SDS-Plus Hammer (3 Mode)
- FUEL Technology: Delivers faster than corded speed, corded durability, and all day work on one charge.
- POWERSTATE Brushless Motor: Provides 2.5J of impact energy, 0-1,400 RPM and 0-4,900 BPM.
- REDLITHIUM-ION Battery Packs: Provide all day work on one charge, maximum power and more recharges.
Included
- FUEL Technology: Delivers faster than corded speed, corded durability, and all day work on one charge.
- POWERSTATE Brushless Motor: Provides 2.5J of impact energy, 0-1,400 RPM and 0-4,900 BPM.
- REDLITHIUM-ION Battery Packs: Provide all day work on one charge, maximum power and more recharges.
- REDLINK PLUS Intelligence: Integrates full-circle communication between tool, battery and charger to protect from overloading, overheating, and over-discharging.
- AVS Anti-Vibration System: Minimises vibration for maximum comfort
M18 CHX-0X
M18 CHX-0X0
M18 CHX-502C
M18 CHX-902X
Product Specifications
Length (mm)
341
341
341
341
Battery platform
M18 REDLITHIUM-ION
M18 REDLITHIUM-ION
M18 REDLITHIUM-ION
M18 REDLITHIUM-ION
Voltage (V)
18
18
18
18
FUEL Gauge
Yes
Yes
Yes
Yes
LED Light
Yes
Yes
Yes
Yes
No load speed (rpm)
0 - 1400
0 - 1400
0 - 1400
0 - 1400
Max. drilling steel (mm)
13
13
13
13
Max. drilling wood (mm)
30
30
30
30
Tool Reception
SDS-Plus
SDS-Plus
SDS-Plus
SDS-Plus
Blow energy (J)
2.5
2.5
2.5
2.5
Max. drilling concrete (mm)
26
26
26
26
Optimised drilling capacity in concrete (mm)
Ø 6 - 20
Ø 6 - 20
Ø 6 - 20
Ø 6 - 20
Vibration drilling / chiselling
8.9 / 9.5
8.9 / 9.5
8.9 / 9.5
8.9 / 9.5
Modes
3-Mode: Rotary Hammer Hammer Only Rotation Only
3-Mode: Rotary Hammer Hammer Only Rotation Only
3-Mode: Rotary Hammer Hammer Only Rotation Only
3-Mode: Rotary Hammer Hammer Only Rotation Only
Max. hammer rate (bpm)
0 - 4900
0 - 4900
0 - 4900
0 - 4900
Handle Style
D-Handle
D-Handle
D-Handle
D-Handle
Weight with battery pack if applicable (kg)
3.5kg (5.0Ah)
3.5kg (5.0Ah)
3.5kg (5.0Ah)
3.9kg (9.0Ah)
ONE SYSTEM,
OVER 200 TOOLS
The MILWAUKEE M18 cordless system represents the
ultimate synergy of professional-grade power, lightweight,
extreme, performance, and superior ergonomics
