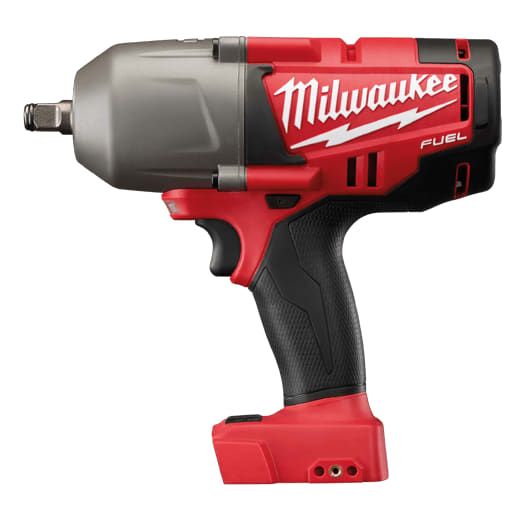

M18 FUEL 1/2" High Torque Impact Wrench
M18 FUEL 1/2" High Torque Impact Wrench
- Superior performance: Delivers up to 950 Nm of maximum fastening torque, up to 1491 Nm of nut-busting torque and maximum runtime
- POWERSTATE Brushless Motor: Maximum power yet runs cooler with no wearable components
- REDLINK PLUS Intelligence: Allows the operator to choose between 2 fastening modes with MILWAUKEE's proprietary DRIVE CONTROL feature. Mode 1 delivers up to 135 Nm of maximum fastening torque, and Mode 2 up to 950 Nm maximum fastening torque
Included
- Superior performance: Delivers up to 950 Nm of maximum fastening torque, up to 1491 Nm of nut-busting torque and maximum runtime
- POWERSTATE Brushless Motor: Maximum power yet runs cooler with no wearable components
- REDLINK PLUS Intelligence: Allows the operator to choose between 2 fastening modes with MILWAUKEE's proprietary DRIVE CONTROL feature. Mode 1 delivers up to 135 Nm of maximum fastening torque, and Mode 2 up to 950 Nm maximum fastening torque
- REDLITHIUM-ION Battery Pack: Provides superior pack construction, electronics and performance to deliver maximum runtime
- 1/2" Anvil with friction ring for fast, easy socket changes
M18 CHIWF12-0
M18 CHIWF12-0X
M18 CHIWF12-402C
M18 CHIWF12-502C
M18 CHIWF12-502X
M18 CHIWF12-602X
Product Specifications
Length (mm)
229
229
229
229
229
229
Battery platform
M18 REDLITHIUM-ION
M18 REDLITHIUM-ION
M18 REDLITHIUM-ION
M18 REDLITHIUM-ION
M18 REDLITHIUM-ION
M18 REDLITHIUM-ION
Voltage (V)
18
18
18
18
18
18
FUEL Gauge
Yes
Yes
Yes
Yes
Yes
Yes
LED Light
Yes
Yes
Yes
Yes
Yes
Yes
No load speed (rpm)
0 - 425 / 1700
0 - 425 / 1700
0 - 425 / 1700
0 - 425 / 1700
0 - 425 / 1700
0 - 425 / 1700
Torque (Nm)
135 / 950
135 / 950
135 / 950
135 / 950
135 / 950
135 / 950
Impact rate (ipm)
0 - 450 / 2300
0 - 450 / 2300
0 - 450 / 2300
0 - 450 / 2300
0 - 450 / 2300
0 - 450 / 2300
Max. bolt diameter (mm)
M22
M22
M22
M22
M22
M22
Anvil
1/2"
1/2"
1/2"
1/2"
1/2"
1/2"
Weight with battery pack if applicable (kg)
3.3kg (5.0Ah)
3.3kg (5.0Ah)
3.3kg (4.0Ah)
3.3kg (5.0Ah)
3.3kg (5.0Ah)
3.3kg (6.0Ah)
ONE SYSTEM,
OVER 200 TOOLS
The MILWAUKEE M18 cordless system represents the
ultimate synergy of professional-grade power, lightweight,
extreme, performance, and superior ergonomics
